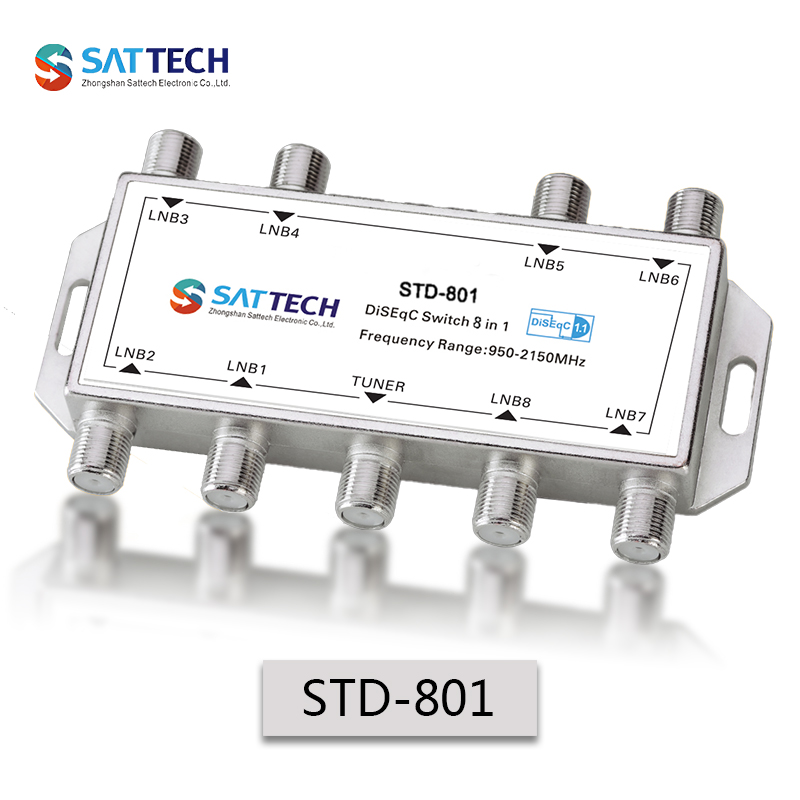

STD-801

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    Zinc die-cast housing, nickel-plated

    ♦ Excellent quality component , professional circuit design and low loss

    ♦ Excellent quality chip , professional program design and compatible with more types of satellite receiver

    ♦ DiSEqC 1.0,1.1,1.2,2.0,2.1,2.2,etc individual and combined control functions;support secondary programming,more powerful function

    ♦ Select one of eight satellite signals through DiSEqC commands supplied from satellite receiver

    ♦ Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously

    ♦ Support DiSEqC “standby” command

  • Item

    Specification

    Item

    Specification

    Frequency Range

    950-2150MHz

    Normal Working Voltage

    12-20V

    Insertion Loss

    3dB

    DC Power Consumption

    10mA

    Isolation

    20dB

    DC Max Power Passing

    500mA

    Return Loss

    8dB

    Overload Protection Current

    600mA

    Operating Temperature

    -40℃ ~85℃

    Impedance(all ports)

    75Ω
