PRODUCTS

  • pro_large

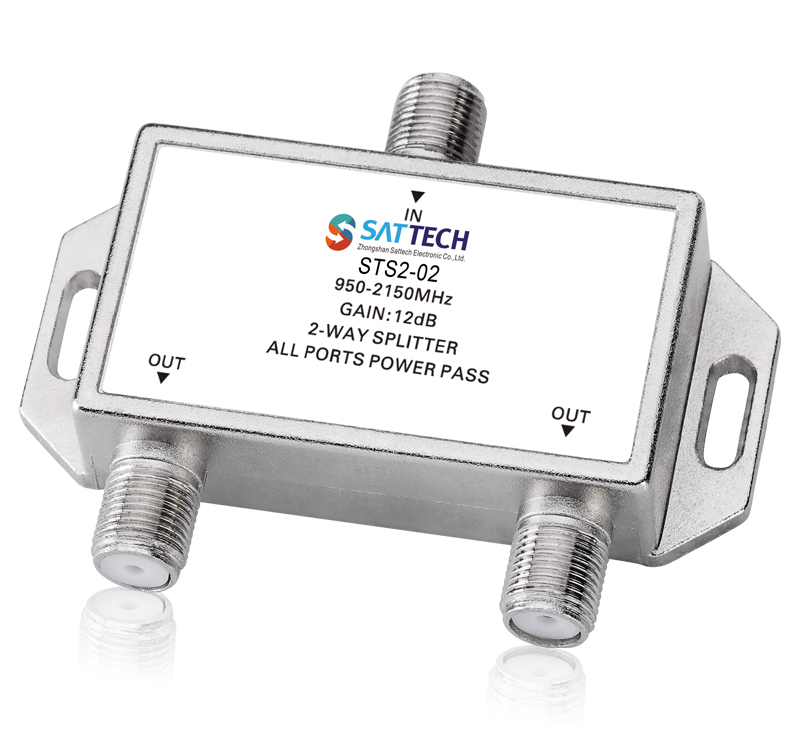

STS2-02

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm



  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    • Zinc die-cast housing,tin-plated

    • Easy installation with two edge hole sites
    • Screening factor: 950-2150MHz≥100dB
    • Low insertion loss,High isolation, perfect performance index
    •   Designed for SATV
    •   Power passing:24V 0.8A(MAX)
    • All ports F-(f) connector,75Ohm
  • Frequency Range (MHz)

    Insertion Loss(dB)

    Isolation(dB)

    Return Loss(dB)

    950-1750

    ≤5

    ≥20

    ≥12

    1750-2150

    ≤5.5

    ≥20

    ≥10
