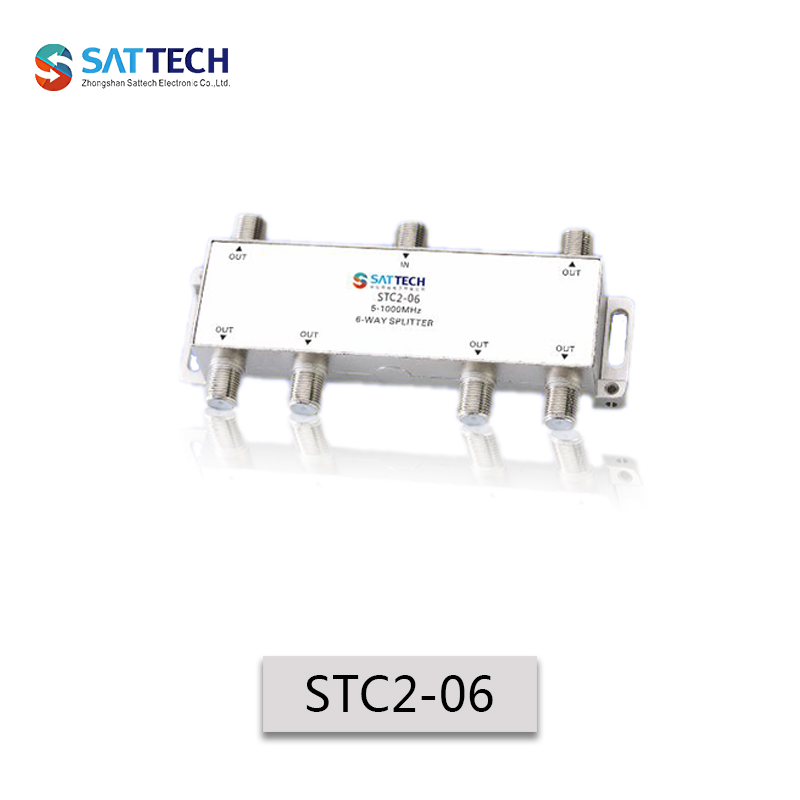

STC2-06

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    • Zinc die-cast housing, nickel-plated
    • Screening factor: 5-1000MHz≥100dB
    • Low insertion loss,high return loss and isolation
    • Micro-strip circuit design and perfect performance index
    • All ports F-(f)connector,75 Ohm
    • Arched housing design, can pass the cable through housing
  • Frequency Range (MHz)

    Insertion Loss(dB)

    Mutual Isolation(dB)

    Return Loss(dB)

    5-40

    ≤10.0

    ≥25

    ≥20

    40-470

    ≤10.0

    ≥25

    ≥20

    470-860

    ≤10.5

    ≥25

    ≥18

    860-1000

    ≤11.0

    ≥22

    ≥17
