PRODUCTS

  • pro_large

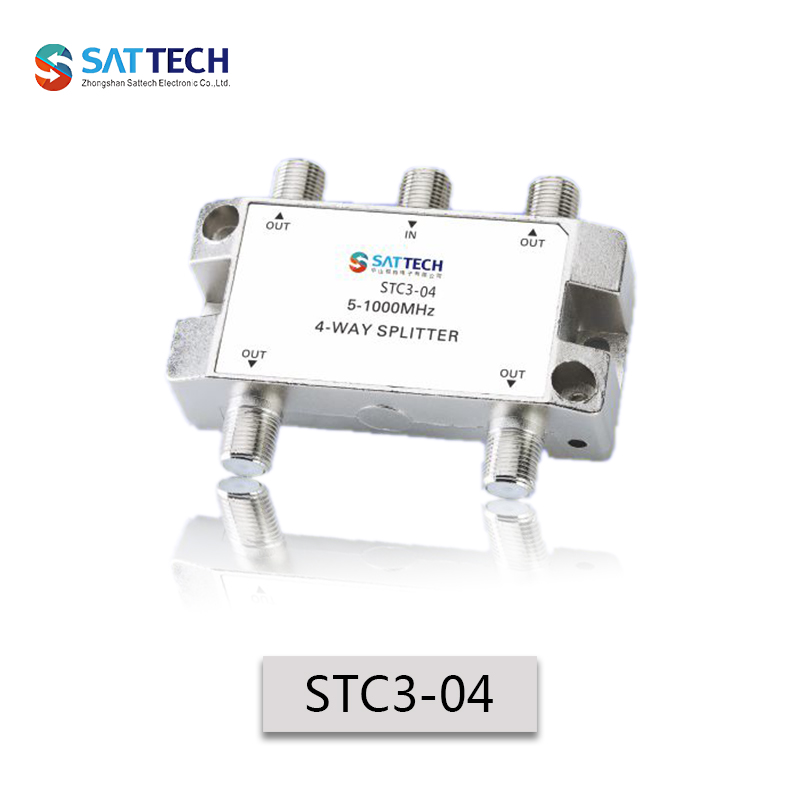

STC3-04

Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    • Zinc die-cast housing,tin-plated
    • Light weight and compact size
    • Easy installation with two edge hole sites
    • Screening factor: 5-1000MHz≥100dB
    • Micro-strip circuit design and perfect performance index
    • All ports F-(f) connector,75Ohm
  • Frequency Range (MHz)

    Insertion Loss(dB)

    Mutual Isolation(dB)

    Return Loss(dB)

    5-40

    ≤7.0

    ≥30

    ≥20

    40-470

    ≤7.2

    ≥30

    ≥20

    470-860

    ≤7.6

    ≥28

    ≥18

    860-1000

    ≤8.0

    ≥25

    ≥17
