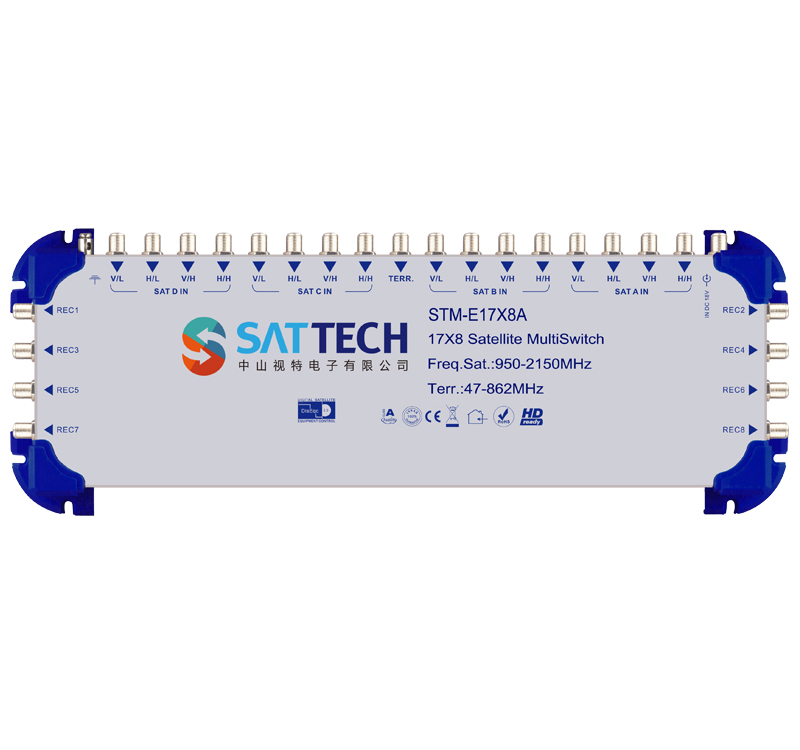

STM-E17X8A

Product Name : Multiswitch of 17 in 08

        Model :STM-E17X8A

Packing Information

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    ♦ Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient

    ♦ Excellent quality component, professional amplification design and low loss

    ♦ External 20V 3000mA DC power offering more stable operation

    ♦ 13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port

    ♦ Capable of connecting Twelve SATV signals, one ANT signal or FM broadcast simultaneously

    ♦ Twelve SATV signals switched through 13/18V 0/22KHz DiSEqC 1.0/2.0 from satellite receiver

    ♦ Supports multi-satellite multi-receiver and cascadable usage

  • Item

    Specification

    Item

    Specification

    Frequency Range ANT

    5-860(MHz)

    Return Loss SAT Inputs

    10(dB)

    Frequency Range SAT

    950-2150 (MHz)

    Return Loss ANT Input

    12(dB)

    Insertion Loss ANT

    5(dB)

    Return Loss Outputs

    8(dB)

    Insertion Loss SAT

    4(dB)

    Output Level ANT

    88(dBuV)

    Insertion Loss Trunk

    5(dB)

    Output Level SAT

    100(dBuV)

    Isolation In-In SAT

    25(dB)

    Normal Working Voltage

    12-20(V)

    Isolation In-In SAT/ANT

    25(dB)

    DC Power Consumption

    50(mA)

    Isolation Between Outputs

    25(dB)

    Supply Voltage(VDC)

    20V(±1)2000mA

    Switching Isolation SAT Inputs

    28(dB)

    Temperature Range

    -20℃-60℃

    Cross Isolation

    25(dB)

    Impedance(all ports)

    75(Ω)
