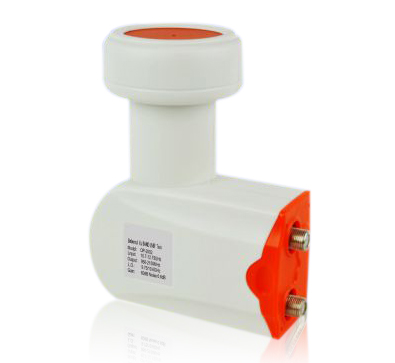

Twin Specification
  • Connection and Size Picture
  • Specification
  • Accessories
  •  Twin Specification
    S. No Parameters Value
    a) RF
    1 Input Freq. Range Low-Band Min: 10.7GHz  Max: 11.7GHz
    High Band Min: 11.7GHz  Max: 12.75GHz
    2 Input Feed horn Type Linear

    Linear.  The feed will be optimize

    to provide maximum efficiency

    for the dish F/D (0.60) selected.

    b) IF
    3 Output Freq. Range Low-Band Min: 950MHz  Max: 1950MHz
    High Band Min:1100MHz  Max:2150MHz
    4 Output VSWR Typical ratio: 2.0 : 1
    5 Output Connector Type Single 75 ohm Female F connector
    c) LO
    6  Local Oscillator   Low-Band Typical: 9.75GHz
    High Band Typical: 10.6GHz
    7  Local Oscillator  stability  Max: +/- 2 MHz
    8  Phase Noise performance   @ 1 KHz  Max: -60 dBc/Hz
    @ 10 KHz  Max: -80 dBc/Hz
    @ 100 KHz  Max: -90 dBc/Hz
    d) Performance across ku band
    9 Conversion gain   60-65dB
    10 Gain Flatness over full band  `+/-5 dB p-p
    11 Gain flatness @ any 26MHz Bandwidth  Max: +/-0.5dB p-p
    12 Noise Figure  0.8dB
    13 F/D 0.6
    14 Cross-pol isolation  Min: 20dB
    15 Image Rejection  Min: 40dB
    16 1 dB Compression Point (Two Tones)  Min: 3dBm(App.)
    e) Power Consumption
    17 DC Current Consumption  Max: 160mA
    18 Operating Voltage and Band Switching  Vertical Min: 9VDC  Max: 14.5VDC
    Horizontal  Min: 15.5VDC  Max: 20VDC
    Low-Band  0KHz
    High-Band  22KHz
    19 Type Linear regulator
    f) Environmental
    20 Operating Temperature  Min: -30  Max: 70
    21 Storage Temperature  Min: -40  Max: 80
