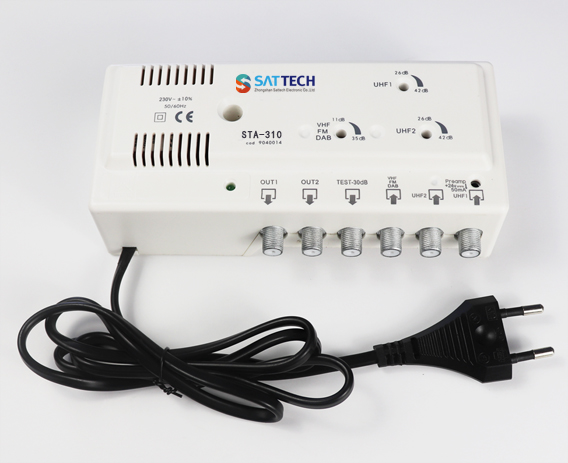

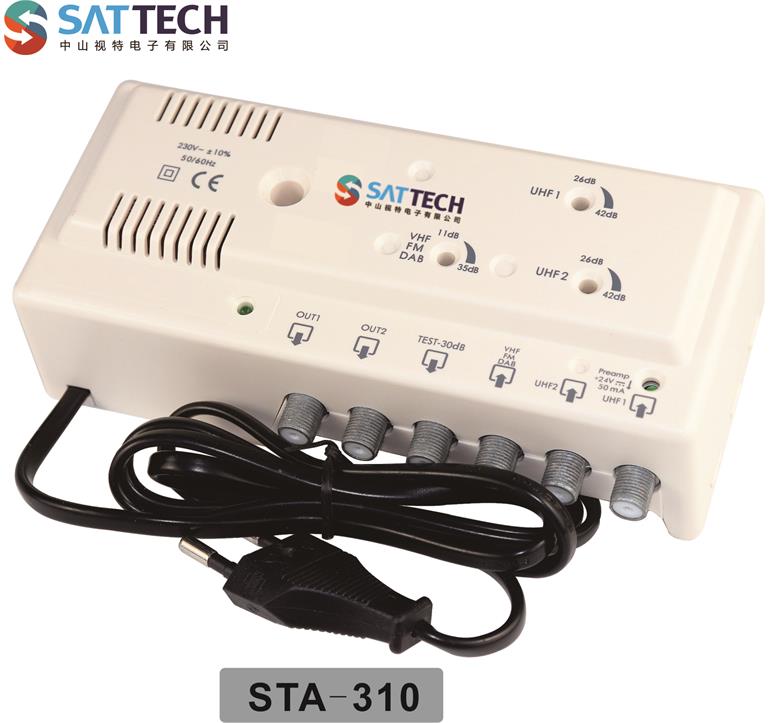

STA-310
Product Name:Amplifier
Model NO:STA-310
Frequency Range:
BI:40-70MHz FM:88-108MHz
BIII/DAB:160-260MHz
UHF1:470-862MHz

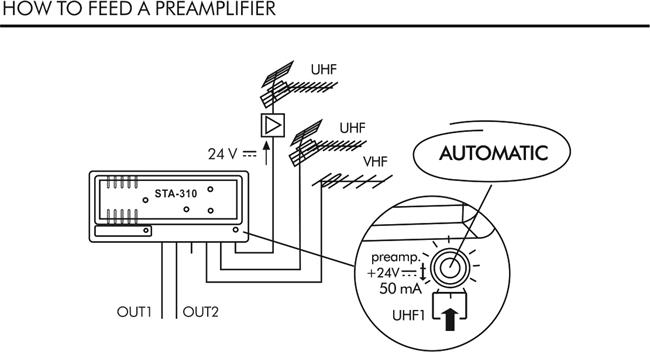

UHF2:470-862MHz and 24VDC out
Power supply:230VAC±10% 50/60Hz
All ports F-(f) connector,75Ohm

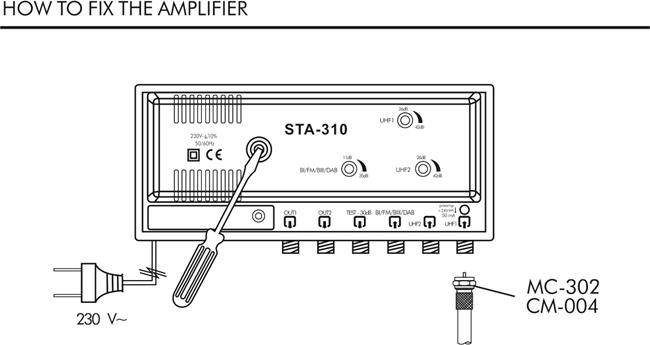

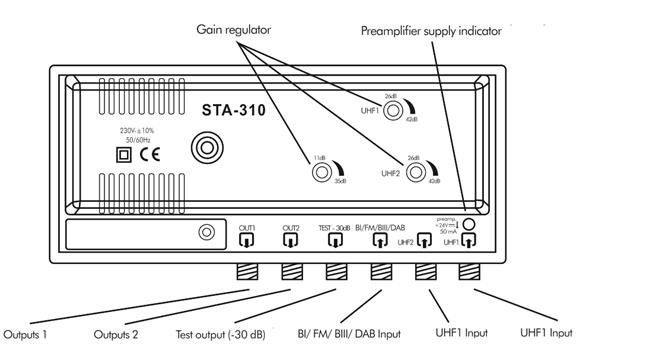

- Connection and Size Picture
- Specification
- Accessories
-
-
Model STA-310 Num of input/output 3 input and 2 output Frequency range Band BI FM BIII/DAB UHF1 UHF2 MHz 40-70 88-108 160-260 470-862 470-862 Gain dB 35±1.0 25±1.0 35±1.0 42±2.0 42±2.0 Adj gain range dB 20 16 Output test point dB －30±0.5 Output level dBuV 2x110 DIN45004B 2x107 (IMD3 -66dB) 2x100 (IMD2 -66dB) Noise figure dB 5±1.5 Isolation dB ≥13 Ouput voltage V － DC24 － mA － 50 － Mains voltage V 230±10% 50/60Hz VA 7 Operating temperature ℃ ﹣10~＋65
