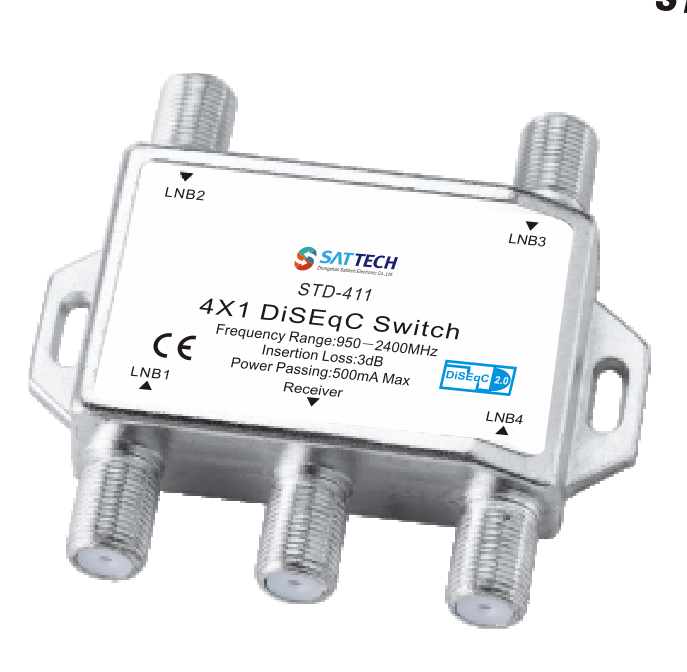

STD-411


Packing Information

Product size:

Giftbox Size :mm

Carton Size :cm


  • Connection and Size Picture
  • Specification
  • Accessories
  • ◆ Zinc die-cast housing, nickel-plated

    ◆ Excellent quality component , professional circuit design and low loss

    ◆ Excellent quality chip , professional program design and compatible with more types of satellite receiver

    ◆ DiSEqC 2.0 , supports bi-directional DiSEqC full control functions

    ◆ Select one of four satellite signals through DiSEqC commands supplied from satellite receiver

    ◆ Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously

    ◆ Support DiSEqC “standby” command

  • Item

    Specification

    Item

    Specification

    Frequency Rang

    950-2400MHz

    Normal Working Voltage

    12-20V

    Insertion Loss

    3dB

    DC Power Consumption

    10mA

    Isolation

    20dB

    DC Max Power Passing

    500mA

    Return Loss

    8dB

    Impedance

    75Ω
