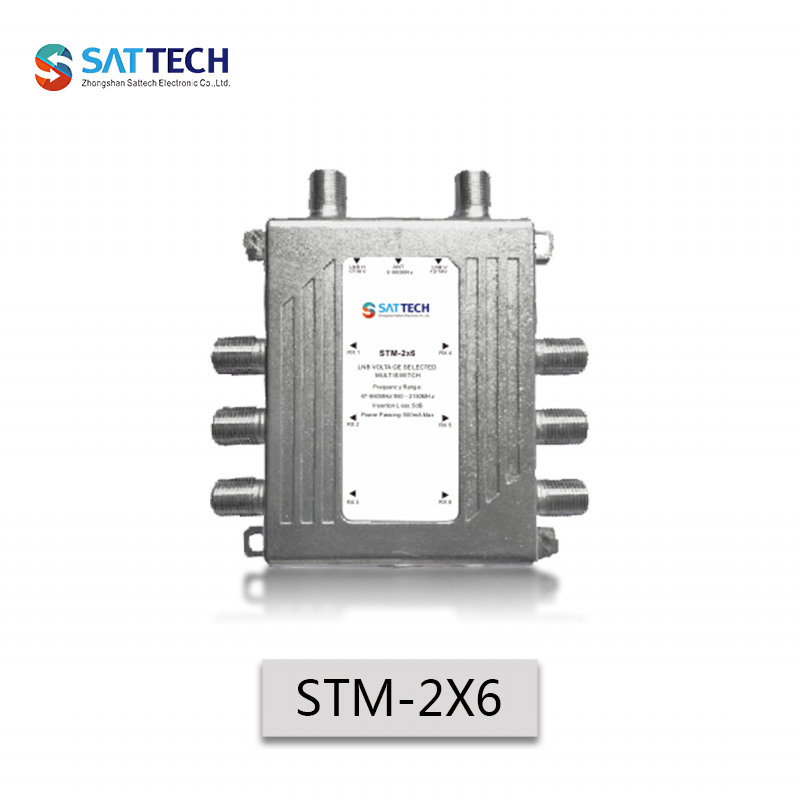

Product Name :Multiswitch of 2 in 6

        Model :STM-2X6

Packing Information

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Zinc die-cast houding,nickel-plated

    Excellent quality component,professional circuit design and low loss

    13/18V supplied by stellite receiver through coaxial cable to switch corresponding port

    Capable of connecting two SATV signals simultaneously,which is switched through 13/18V

    Distributed into six subscribers to use simultaneously and no mutual interference

    Applicable to multi-satellite and multi-receiver usage

  • ITEM Specifications
    Frequency Range 950-2150(MHz)
    Insertion Loss 5(dB)
    Isolation 25(dB)
    Return Loss 10(dB)
    Normal Working Voltage 12-20
    DC Power Consumption 30(mA)
    DC Max Power Passing 500(mA)
    Impedance(all ports) 75(Ω)
