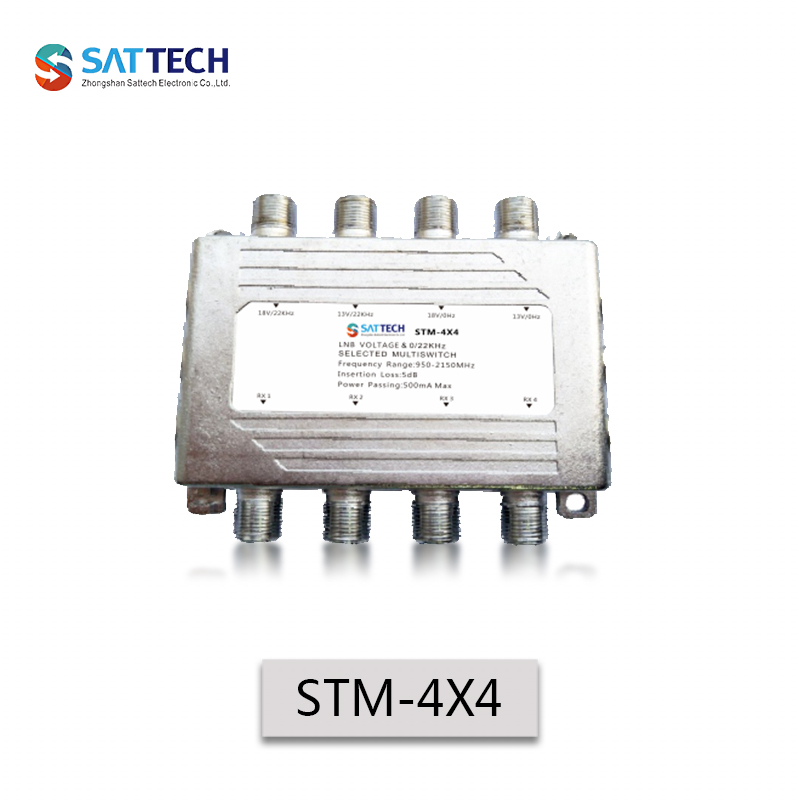

STM-4X4

Product Name : Multiswitch of 4 in 4

        Model :STM-4X4

Packing Information

Giftbox Size :mm

Carton Size :cm

  • Connection and Size Picture
  • Specification
  • Accessories
  • Zinc die-cast houding,nickel-plated

    Excellent quality component,professional circuit design and low loss

    13/18V、0/22KHz supplied by stellite receiver through coaxial cable to switch corresponding port

    Capable of connecting four SATV signals simultaneously

    Four SATV signals switched through 13/18V、0/22KHz

    Distributed into four subscribers to use simultaneously and no mutual interference

    Applicable to multi-satellite and multi-receiver usage

    Power supplied from satellite receiver or external power

  • ITEM Specifications
    Frequency Range  950-2150(MHz)
    Insertion Loss  5(dB)
    Isolation Between Outputs 25(dB)
    Switching Isolation Input 28(dB)
    Return Loss Inputs 10(dB)
    Return Loss Outputs 8(dB)
    Output Level  95(dBuV)
    Normal Working Voltage 10-25(V)
    DC Power Consumption 40(mA)
    DC Max Power Passing 500(mA)
    Impedance(all ports) 75(Ω)
