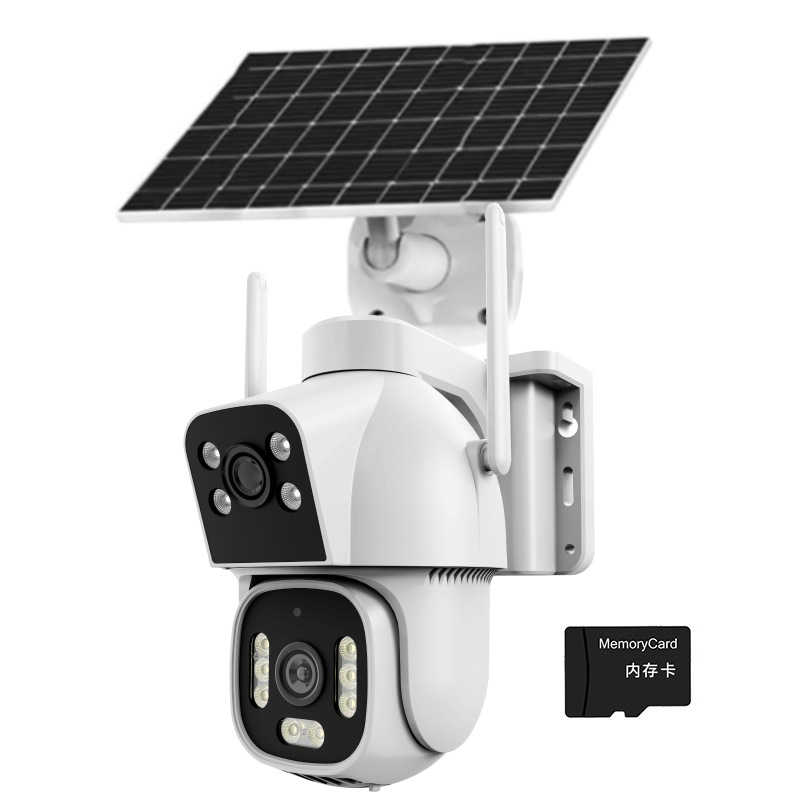

Product name:4G AOV Intelliaent PTZ Camera
Model：STCA-02A
Packing Information
Giftbox Size:mm
Carton Size:mm
- Connection and Size Picture
- Specification
- Accessories
-
Feature：
1、AOV (always-on-video) technology, 24-hours full day recording
2、2*2MP clear and smooth video; H.265
3、4MP full color 4mm/F1.4 Lens
4、Full duplex two-way-talk (built-in MIC & Speaker); G.711U
5、Full color night vision in black light environment; PWM dimming
6、AI accurated human shape detection, max 30m detected rangel
7、Storage: TF card, max up to 256GB
8、Support offline protection & fault detection
9、Solar Panel: 8W; Battery: 6pcs / 12,000mAh; Min consumption: 0.02W
10、Support 5V- 9V wide range fast charging technology, max 22W(9V)
Battery life over 10 days in cloudy day
-
Product
Modle
STCA-02
system
CPU
0.5T computing power high-performance dual-core CPU
OS
Embedded Linux operating system
lens
focal length
4mm+4mm
aperture
F1.4+F1.4
video
sensor
Two way 1/3.2’ CMOS Sensor
coding
H.265+
format
PAL 50HZ/NTSC 60HZ
pixel
1920*1080（2MP+2MP）
frame rate
10fps
bitstream
135kbps-2048kbps
Day/Night Mode
Black and white, full-color, intelligent, starlight
Capture
support
audio
coding
G.711U
Input
Built in passive MIC
Output
Built in 8R2W speaker
Voice call
Full duplex voice call
recording
method
AOV recording, alarm recording
storage
TF card/cloud recording（domestically）
alarm
AI detection
Accurate humanoid AI function（40M）
trigger
Humanoid detection alarm
voice
Multiple voice options
linkage
Recording and capturing
Pan-Tilt
preset position
Support 6 preset position settings
Tracking
Support precise humanoid tracking
network
4G
Full network 4G (overseas version supports 4G cloud card)
Solar and batteries
Solar panels
5V 13W
batteries
6*2000mAh 18650 battery
Charge
Support three-stage intelligent charging (trickle, constant current, constant voltage) and low voltage over discharge protection
other
capacity
Maximum support for 256 GB (universal FAT32 format)
Woeking Voltage
DC5V~9V power supply （TYPE-C）（maximum support 9V 3A）
Operating Temperature
-20℃~55℃
