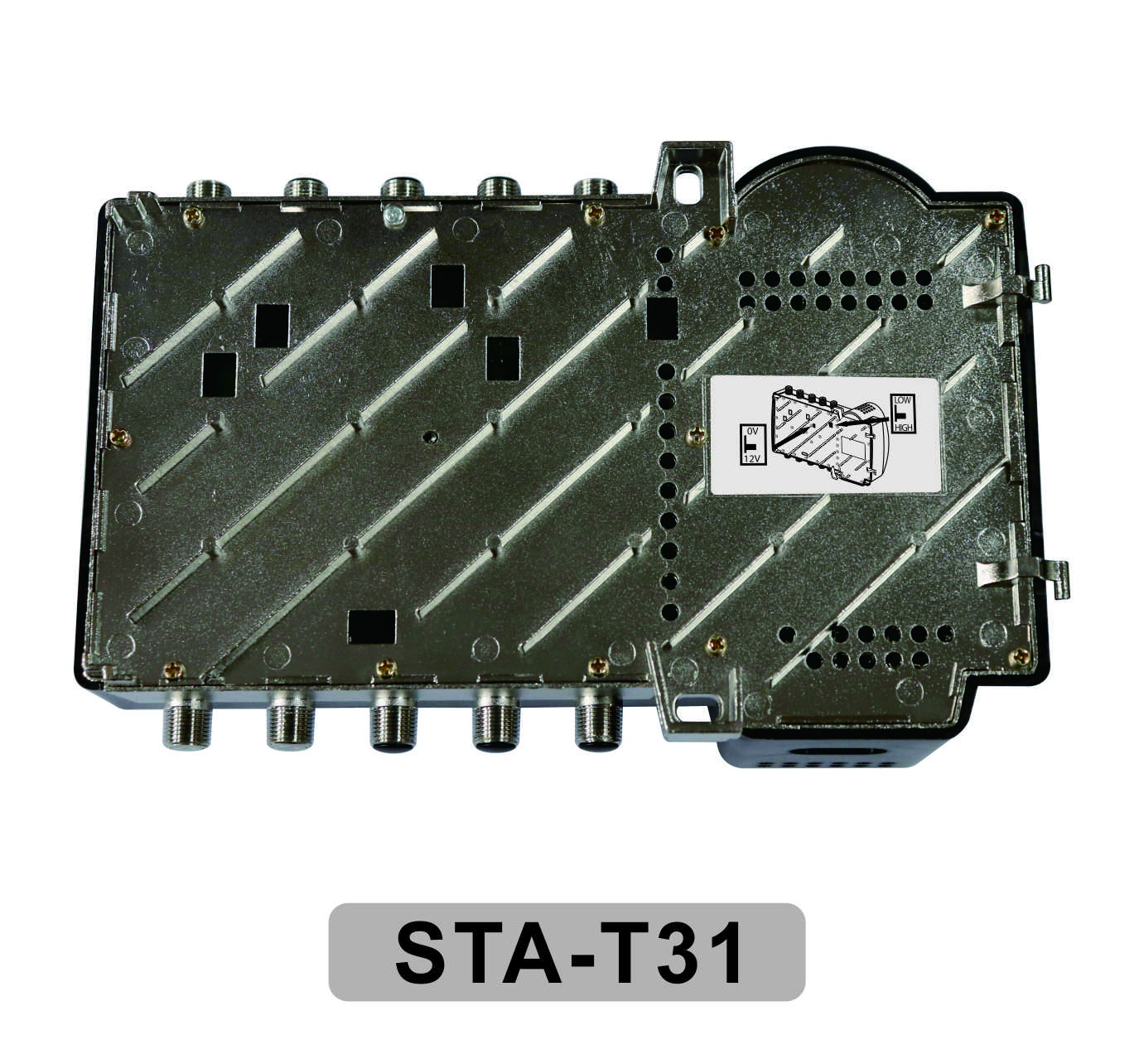

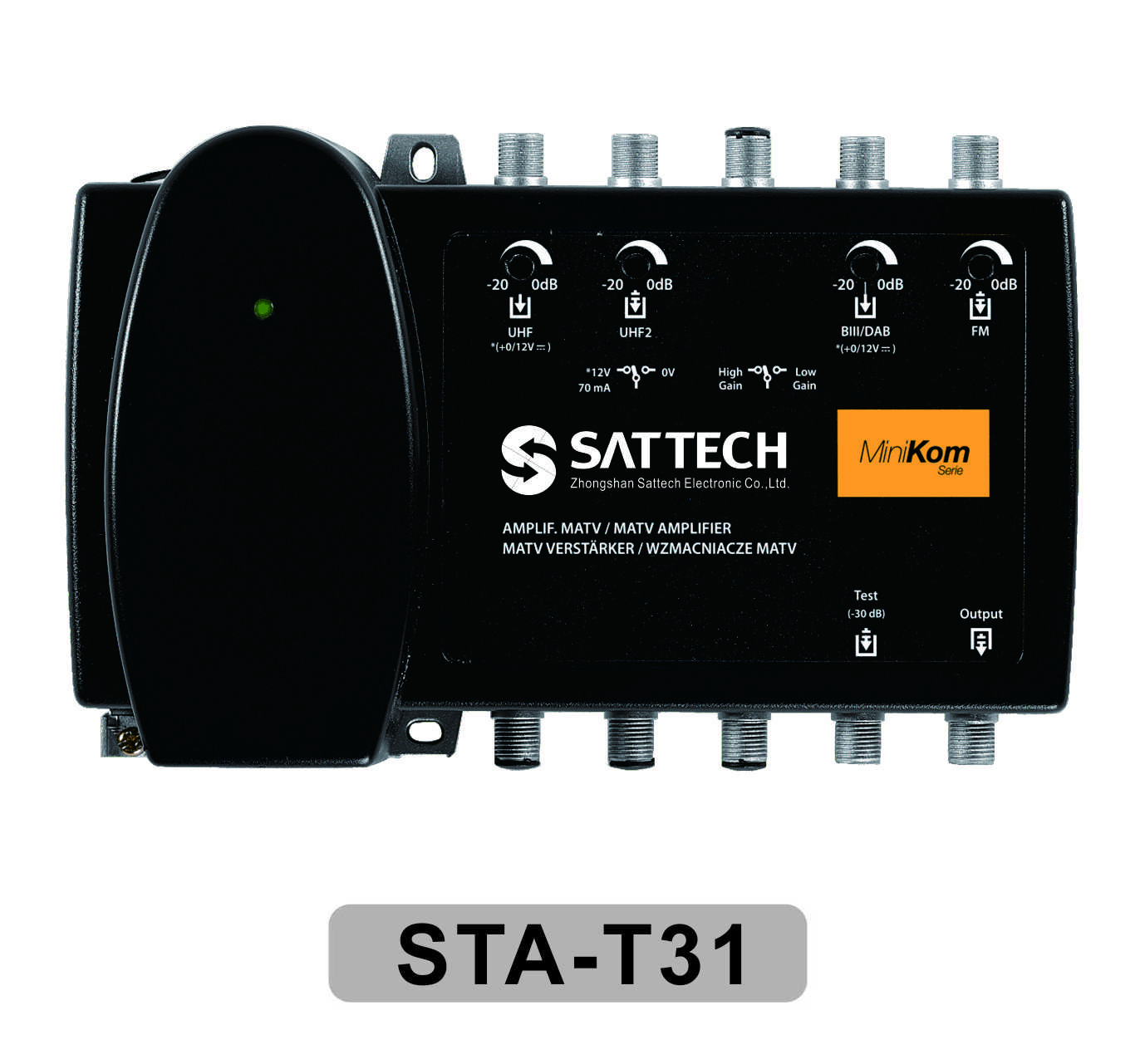

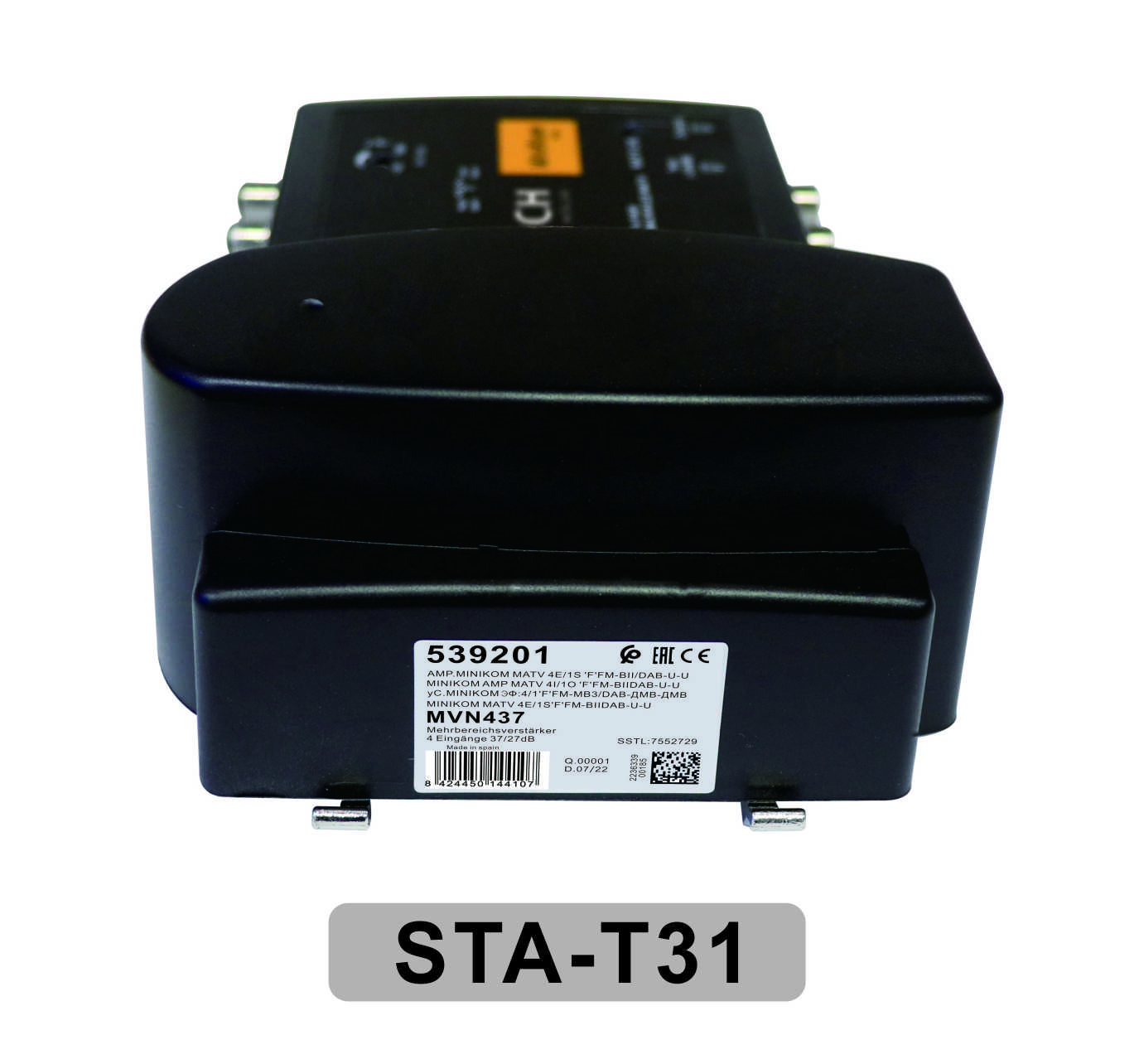

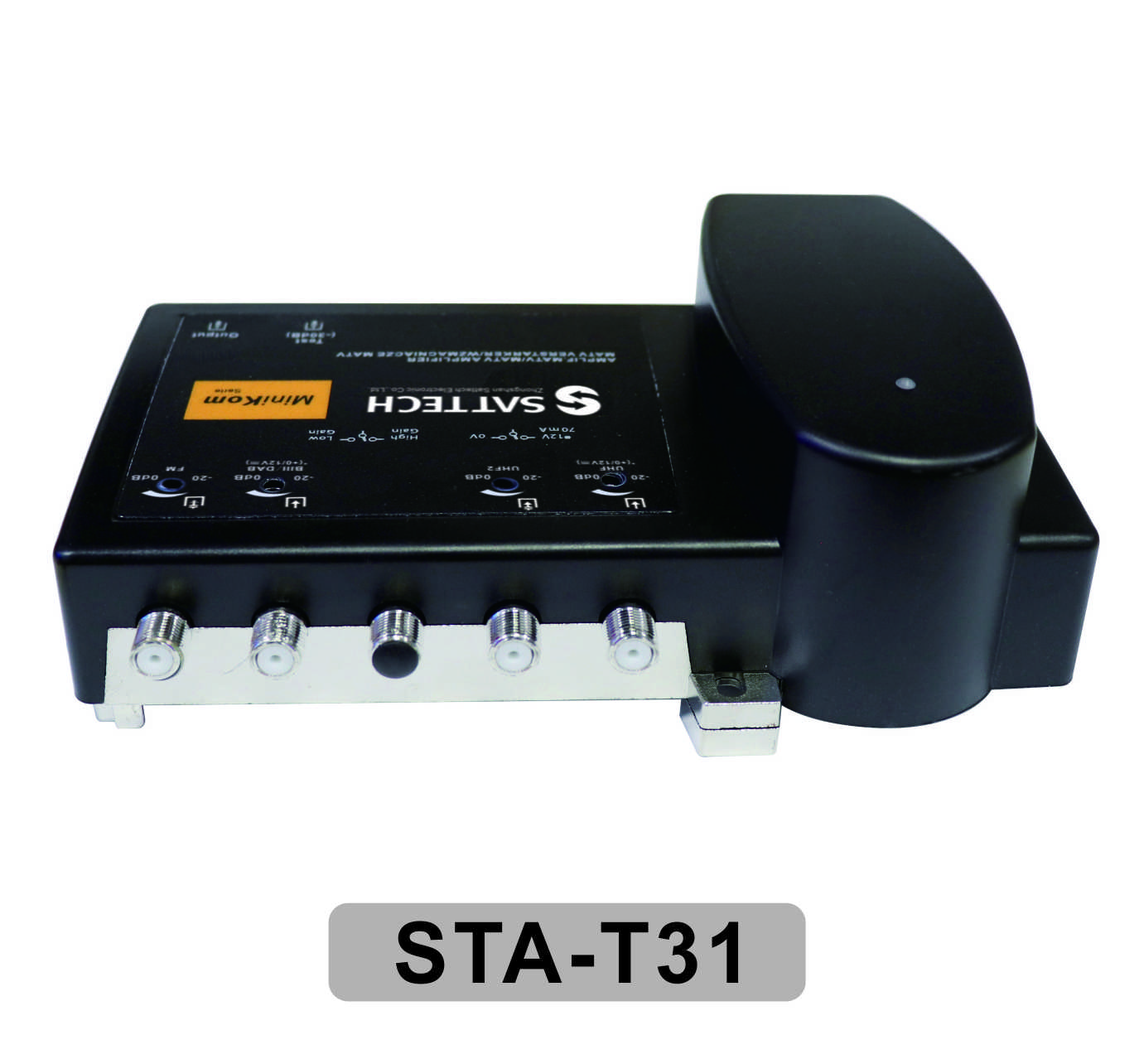

STA-T31
Product Name:Amplifier
Suitable for individual digital terrestrial TV installations with several TV sets located away from the main socket
- Connection and Size Picture

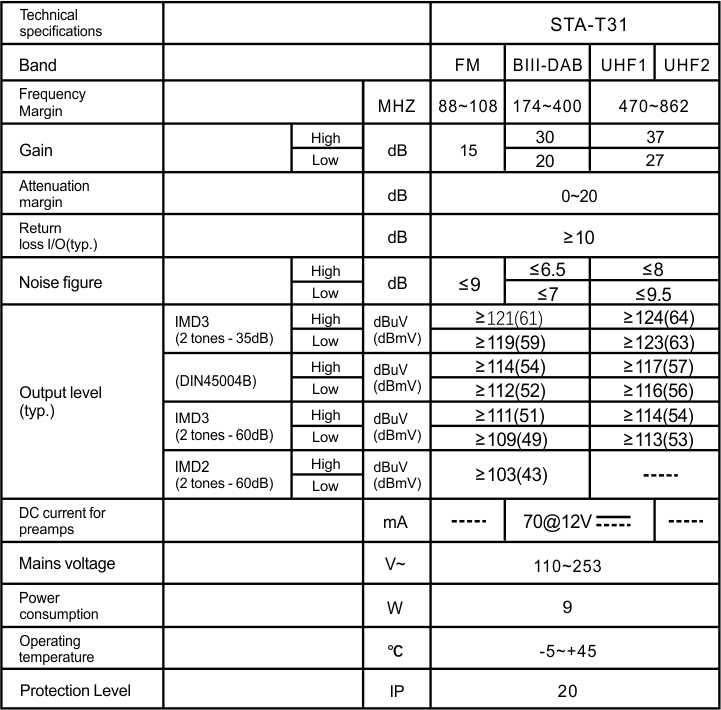

- Specification
- Accessories
-
◆ Amplifier with 4 inputs(UHF1-UHF2-BIII/DAB-FM) and 1 output with an additional test connector,
based on asplit-band amplification technique(UHF-VHF) which guarantees no intererence between
both bands.
◆ Inputs UHF1 and BIII/DAB allow, by means of an electronic device, powering preamplifiers at 12Vdc.
This function is selectable by means of a switch placed in there ar of the module

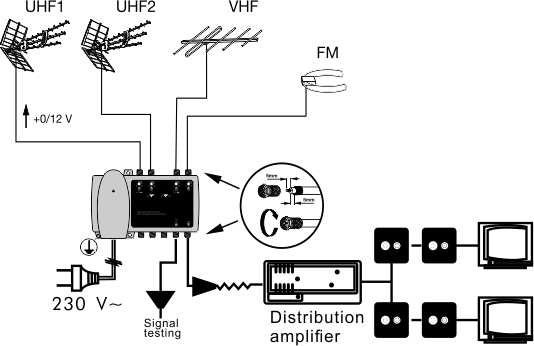

◆ The typical application is as a MATV system headend.
-
