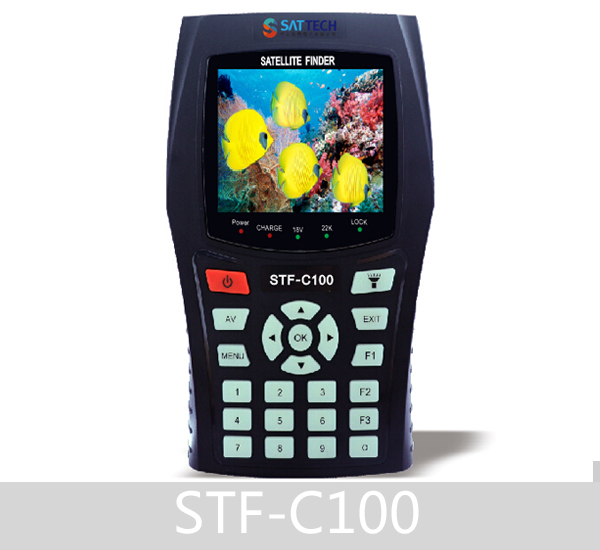

STF-C100

Support DVB-S2
3.5” TFT LCD

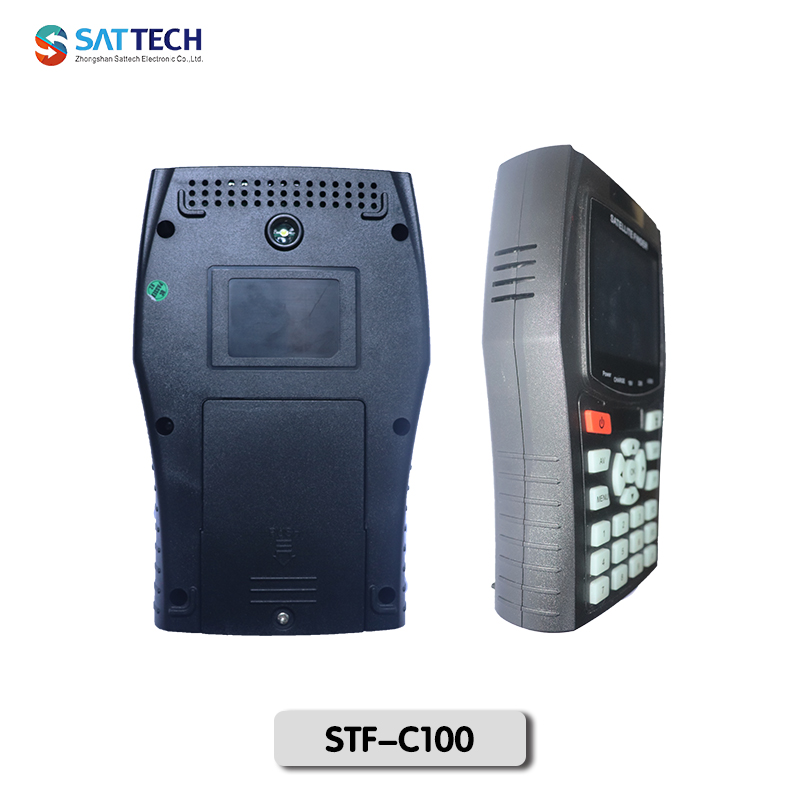

  • Connection and Size Picture
  • Specification

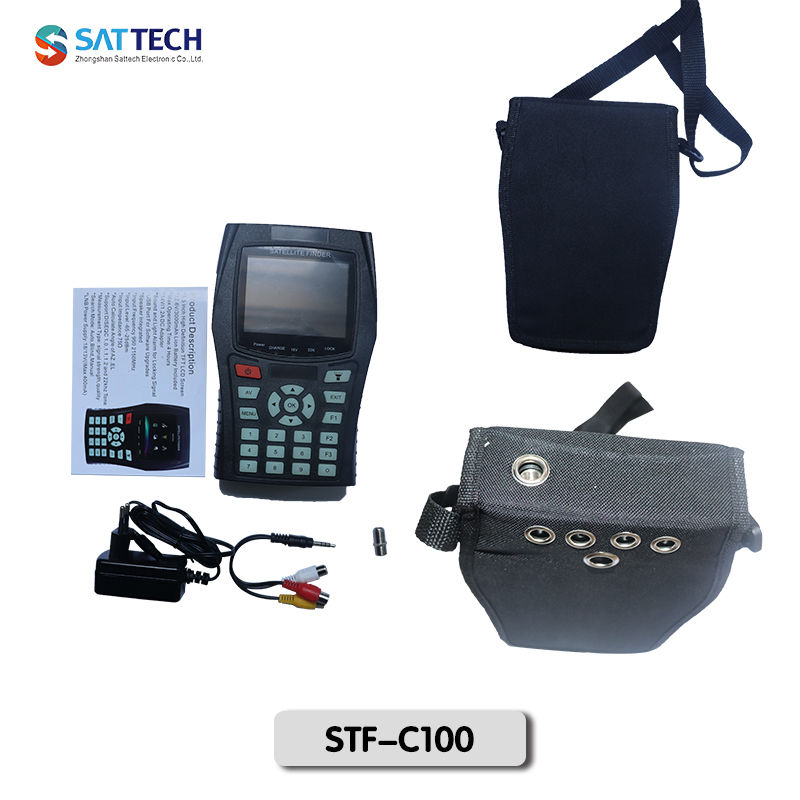

  • Accessories
  •
  • System Resources

    Physical Specification

    Main Processor

    600 Hzbased CPU

    LCD Display

    3.5 inch

    Flash Memory

    64M Bits

    Size[W*H*D]

    180 x120x 40(mm)

    DDR SDRAM

    1024M Bits

    Net Weight

    0.6Kg





    Operating Temperature

    0℃ ~ + 45℃





    Storage Temperature

    -10℃ ~ + 70℃

    Tuner/Front-end

    Power supply

    Tuner Type

    DVB-S/DVB-S2

    Input Voltage Adapter

    Free Voltage (100~240V  AC  50/60Hz)

    InpuConnector

    F-type

    Power Consumption

    10W MAX

    Frequenc Range

    950MHz~2150MHz

    Power charger output

    14V DC 1.2A

    Signal Level

    -65~-25dBm

    Battery

    12.6V DC 3000mA

    Impedance

    75Ω





    LNB Power & Polarization

    Vertical:+13V

    Horizontal:+18V

    Current:Max.500mA

    Overload Protection

    Battery charging time

    6H

    DiSEqC Control

    Versio1.0/1.1/1.2/1.3,USALS Available

    Battery standard discharging time

    3-4H

    22KHz Tone

    Frequency:22±1KHz

    Audio output

    Built-in Loudspeaker

    Demodulation

    QPSK,8PSK,16APSK,32APSK

    USB

    1*USB 2.0 sloCompatible for Host

    Symbol Rate

    1~60Msps

    Transport Stream

    MPEG-2/4,H.264
