PRODUCTS

  • pro_large

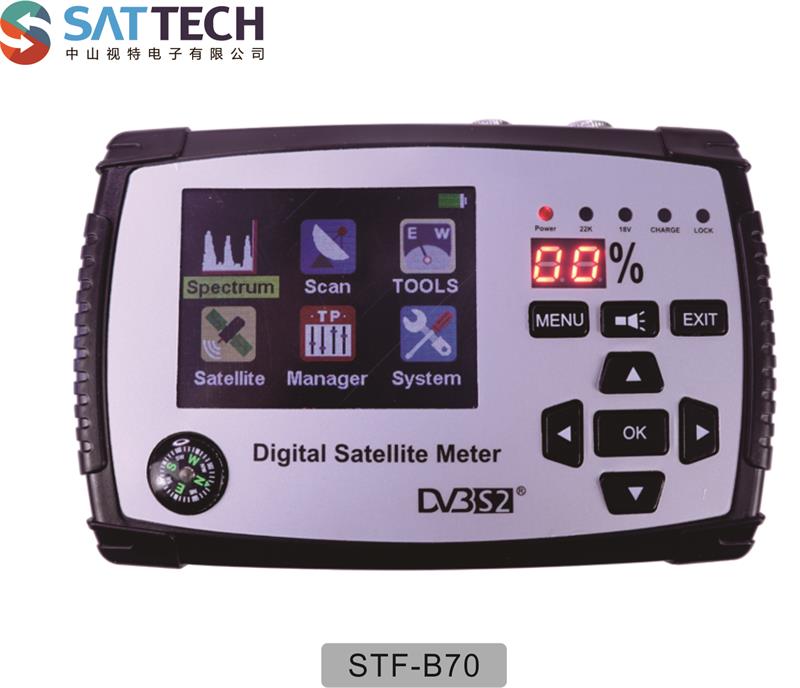

STF-B70

Product Name:Satellite Finder

Model NO:STF-B70

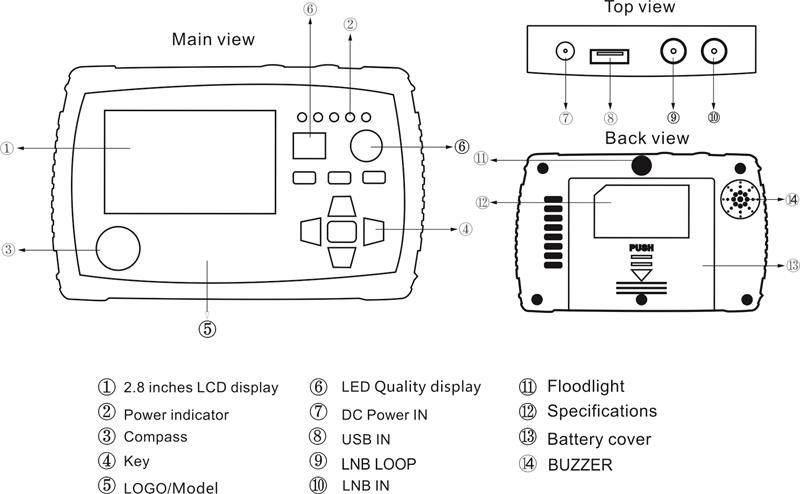

  • Connection and Size Picture
  • Specification
  • Accessories
  • Features:

    Support DVB-S2,DVB-S

    Multi standard demodulation & decoding

    LCD display and Signal quality LED display

    Built-in LCD backlight, signal buzzer, lighting and DC power

    USB software upgrade

    Support 0/22KHz and 13/18V control signals

    Operating Voltage DC12V-20V







  • Item

    Specification

    Item

    Specification

    Frequency Range

    950-2150MHz

    Operating Temperature

    0℃ ~ + 40℃

    Input Level Range

    -65dBm~-25dBm

    Input connector

    F type

    Symbol rate

    1 to 45Msps

    Impedance

    75Ω

    DiSEqC 1.0

    Supported

    DC power supply

    DC 12 ~20V
